Image Processing

Curve Flows (Java Applet)
4th Order Image Flow (Java Applet)

Comparsion of affine flow (AMSS) and our 4-th order flow:

upleft
original image		 upright
AMSS for 5 steps
downleft
AMSS for 20 steps
(starts to blur)		 downright
Our flow for 5 steps
upleft
original image
with Gaussian noise		 upright
AMSS for 10 steps
downleft
AMSS for 20 steps
(starts to blur)		 downright
Our flow for 10 steps

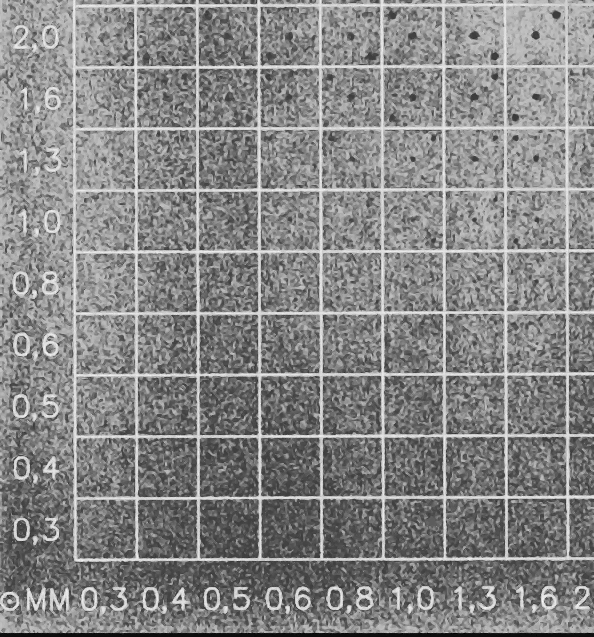

upleft
original image
with impulse noise		 upright
AMSS for 10 steps
downleft
AMSS for 20 steps
(starts to blur)		 downright
Our flow for 10 steps

Our flow with histogram adjustment


left: original image
right: our flow with histogram adjustment

Some basic curves:

a=4 a=1

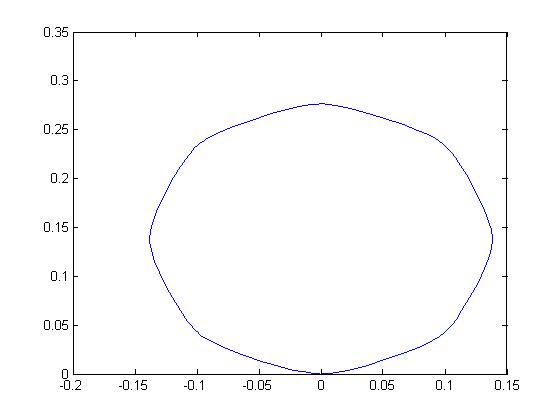

a=1/9 a=1/16

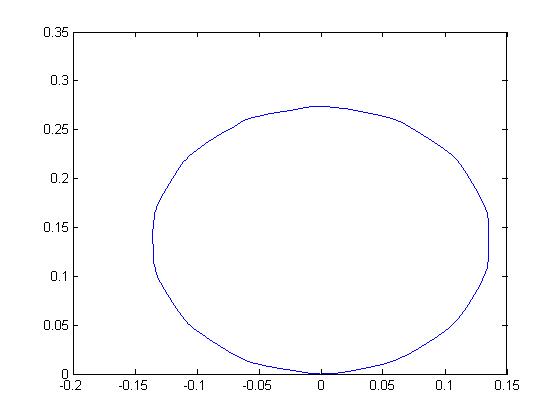

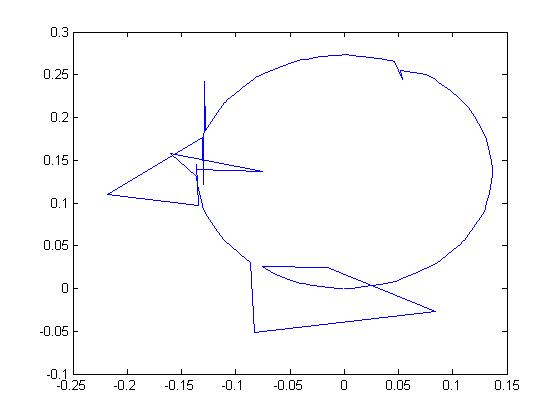

a=1/49 a=1/100

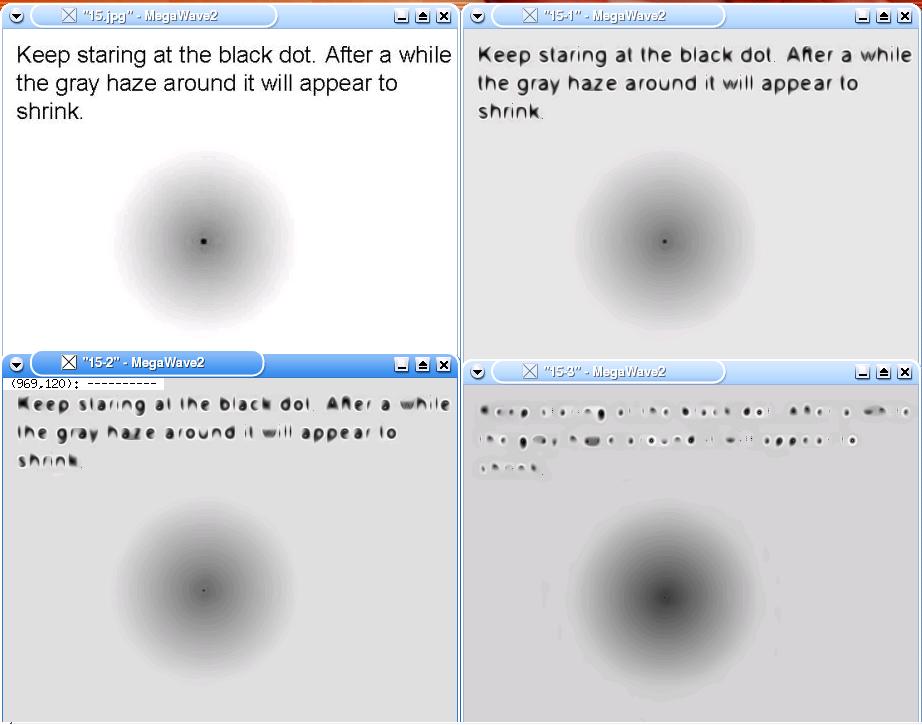

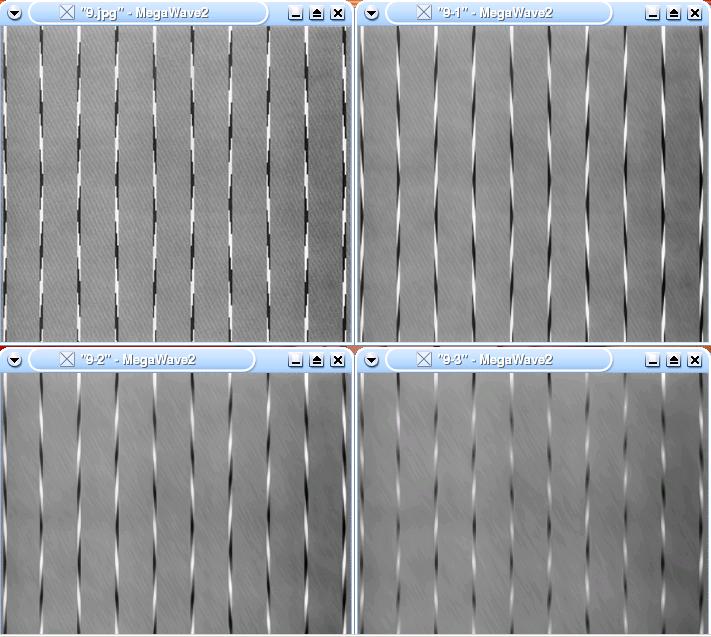

Examples of AMSS (using MegaWave)

upleft: original image
upright: AMSS flow for 2 units of time
downleft: AMSS flow for 4 units of time
downright: AMSS flow for 8 units of time
(1 unit of time is about 20 steps)
